Fashion MNIST

데이터 로드

import torch
import torch.nn as nn
import torchvision.datasets as datasets
import torchvision.transforms as transforms
import matplotlib.pyplot as plt
from torchvision.utils import make_grid
import numpy as np
from torch.utils.data import DataLoader

import os
import time

batch_size = 100
num_epochs = 50
learning_rate = 0.0001

device = torch.device('cuda') if torch.cuda.is_available() else torch.device('cpu')
device

device(type='cuda')

transform = transforms.Compose(
    [transforms.ToTensor(),
     transforms.Normalize((0.5,), (0.5,))])

BASE_DIR = os.getcwd()
DATASET_PATH = os.path.join(BASE_DIR, 'MNIST_Fashion')

train_data = datasets.FashionMNIST(root=DATASET_PATH, train=True, transform=transform, download=True)
test_data = datasets.FashionMNIST(root=DATASET_PATH, train=False, transform=transform, download=True)
train_loader = torch.utils.data.DataLoader(train_data, batch_size=batch_size, shuffle=True, drop_last=True)
test_loader = torch.utils.data.DataLoader(test_data, batch_size=batch_size, shuffle=False, drop_last=True)

label_names = {
    0: 'T-Shirt',
    1: 'Trouser',
    2: 'Pullover',
    3: 'Dress',
    4: 'Coat',
    5: 'Sandal',
    6: 'Shirt',
    7: 'Sneaker',
    8: 'Bag',
    9: 'Ankle Boot'
}



데이터 시각화

def imshow(img):
    img = img / 2 + 0.5
    npimg = img.numpy()
    plt.imshow(np.transpose(npimg, (1, 2, 0)))
    plt.show()

dataiter = iter(train_loader)
images, labels = dataiter.next()
print(images[0].shape)
print(labels[0])

torch.Size([1, 28, 28])
tensor(3)

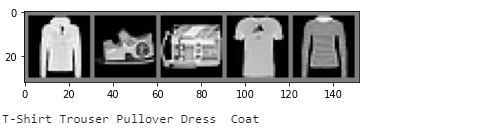

imshow(make_grid(images[0:5]))
print(' '.join('%5s' % label_names[j] for j in range(5)))

tf = transforms.ToPILImage()
pil_img = tf(images[0])

plt.figure()
plt.imshow(pil_img)
plt.colorbar()
plt.gca().grid(False)

모델 정의

class DNN(nn.Module):
    def __init__(self):
        super(DNN, self).__init__()
        self.layer1 = nn.Sequential(
            torch.nn.Linear(784, 256, bias=True),
            torch.nn.BatchNorm1d(256),
            torch.nn.ReLU()
        )
        self.layer2 = nn.Sequential(
            torch.nn.Linear(256, 64, bias=True),
            torch.nn.BatchNorm1d(64),
            torch.nn.ReLU()
        )
        self.layer3 = nn.Sequential(
            torch.nn.Linear(64, 10, bias=True)
        )

    def forward(self, x):
        x = x.view(x.size(0), -1) # flatten
        x_out = self.layer1(x)
        x_out = self.layer2(x_out)
        x_out = self.layer3(x_out)
        return x_out

def weights_init(m):
    if isinstance(m, nn.Linear):
        nn.init.xavier_normal_(m.weight)

model = DNN().to(device)
model.apply(weights_init)

DNN(
  (layer1): Sequential(
    (0): Linear(in_features=784, out_features=256, bias=True)
    (1): BatchNorm1d(256, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
    (2): ReLU()
  )
  (layer2): Sequential(
    (0): Linear(in_features=256, out_features=64, bias=True)
    (1): BatchNorm1d(64, eps=1e-05, momentum=0.1, affine=True, track_running_stats=True)
    (2): ReLU()
  )
  (layer3): Sequential(
    (0): Linear(in_features=64, out_features=10, bias=True)
  )
)

criterion = torch.nn.CrossEntropyLoss().to(device)
optimizer = torch.optim.Adam(model.parameters(), lr=learning_rate)

학습하기

costs = []
total_batch = len(train_loader)
for epoch in range(num_epochs):
    epoch_loss = 0
    start = time.time()
    for i, (imgs, labels) in enumerate(train_loader):
        imgs, labels = imgs.to(device), labels.to(device)
        outputs = model(imgs)
        loss = criterion(outputs, labels)

        optimizer.zero_grad()
        loss.backward()
        optimizer.step()
        epoch_loss += loss

    avg_cost = epoch_loss / total_batch
    print(f'epoch : {epoch+1}, Loss : {epoch_loss}, time : {time.time() - start}')
    costs.append(avg_cost)

epoch : 1, Loss : 427.8835754394531, time : 10.723026752471924
epoch : 2, Loss : 264.4226989746094, time : 10.470693826675415
epoch : 3, Loss : 227.8849639892578, time : 10.600678205490112
epoch : 4, Loss : 206.06298828125, time : 10.684939622879028
epoch : 5, Loss : 190.15463256835938, time : 10.633031845092773
epoch : 6, Loss : 176.64663696289062, time : 10.609180927276611
epoch : 7, Loss : 166.87904357910156, time : 10.762888193130493
epoch : 8, Loss : 158.03636169433594, time : 10.721224308013916
epoch : 9, Loss : 148.6572723388672, time : 10.67033076286316
epoch : 10, Loss : 140.81983947753906, time : 10.924778938293457
...<생략>



평가하기

model.eval()
with torch.no_grad():
    correct = 0
    total = 0
    for i, (imgs, labels) in enumerate(test_loader):
        imgs, labels = imgs.to(device), labels.to(device)
        outputs = model(imgs)
        _, argmax = torch.max(outputs, 1)
        total += imgs.size(0)
        correct += (labels == argmax).sum().item()

    print('Accuracy for {} images: {:.2f}%'.format(total, correct / total * 100))

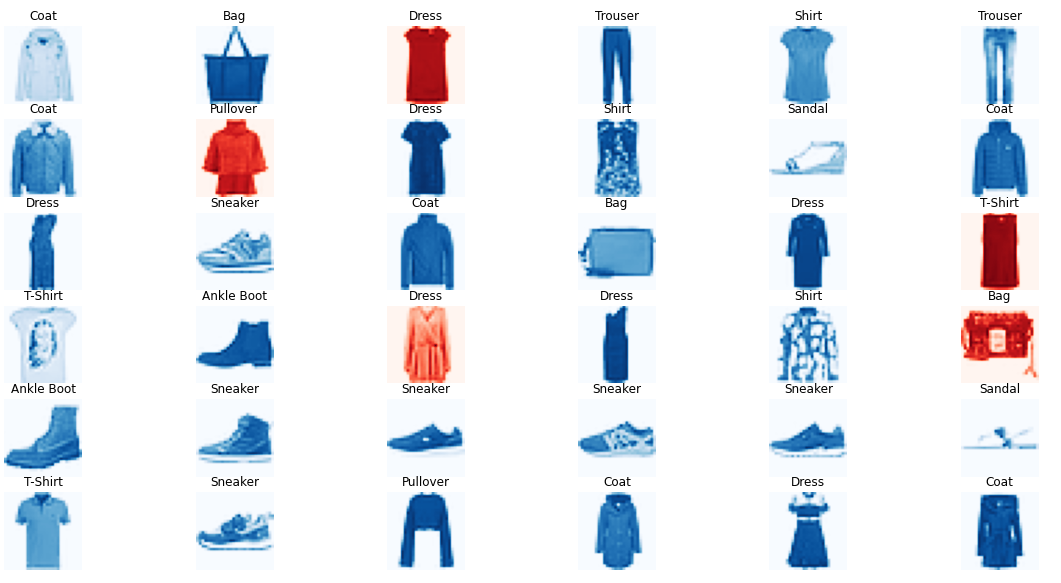

columns = 6
rows = 6
fig = plt.figure(figsize=(20,10))

model.eval()
for i in range(1, columns*rows+1):
    idx = np.random.randint(len(test_data))
    img = test_data[idx][0].unsqueeze(dim=0).to(device)

    output = model(img)
    _, argmax = torch.max(output, 1)
    pred = label_names[argmax.item()]
    label = label_names[test_data[idx][1]]

    fig.add_subplot(rows, columns, i)
    plt.title(label)
    if pred == label:
        cmap = 'Blues'
    else:
        cmap = 'Reds'
    plot_img = test_data[idx][0][0,:,:]
    plt.imshow(plot_img, cmap=cmap)
    plt.axis('off')

plt.show()

참고

• http://www.gisdeveloper.co.kr/?p=7846
• https://tutorials.pytorch.kr/beginner/blitz/cifar10_tutorial.html
